Home > Products > Pillow Block Bearings > UCFC200

UCFC200

Prodcut Name:UCFC200

Product Description

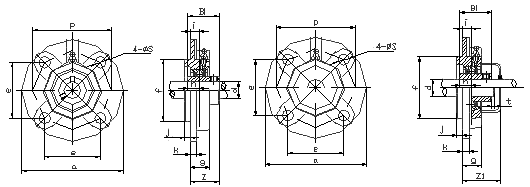

Bearing Unit NO.	Shaft Dia d		Dimensions(mm)														Bolt Used		Bearing No.	Housing No.	Housing Wt (kg)
Bearing Unit NO.	(in)	(mm)	a	p	e	i	s	j	k	g	f	t	z1	z	Bi	n	mm	in	Bearing No.	Housing No.	Housing Wt (kg)
UCFC201-8 UCFC202-9 UCFC202-10 UCFC203-11 UCFC 204-12 UCFC201 UCFC202 UCFC203 UCFC204	1/2 9/16 5/8 11/16 3/4	12 15 17 20	100	78	55.1	10	12	5	7	20.5	62	2	35.5	28.3	31	12.7	M10	3/8	UC201-8 UC202-9 UC202-10 UC203-11 UC204-12 UC201 UC202 UC203 UC 204	FC204	0.55


UCFC205-13 UCFC205-14 UCFC205-15 UCFC205-16 UCFC205	13/16 7/8 15/16 1	25	115	90	63.6	10	12	6	7	21	70	2	38.5	29.7	34.1	14.3	M10	3/8	UC205-13 UC205-14 UC205-15 UC205-16 UC205	FC205	0.8
UCFC206-17 UCFC206-18 UCFC206-19 UCFC206-20 UCFC206	1-1/16 1-1/8 1-3/16 1-1/4	30	125	100	70.7	10	12	8	8	23	80	2	41	32.2	38.1	15.9	M10	3/8	UC206-17 UC206-18 UC206-19 UC206-20 UC206	FC206	1
UCFC207-20 UCFC207-21 UCFC207-22 UCFC207-23 UCFC207	1-1/4 1-5/16 1-3/8 1-7/16	35	135	110	77.8	11	14	8	9	26	90	3	47	36.4	42.9	17.5	M12	7/16	UC207-20 UC207-21 UC207-22 UC207-23 UC207	FC207	1.2
UCFC208-24 UCFC208-25 UCFC208	1-1/2 1-9/16	40	145	120	84.8	11	14	10	9	26	100	3	52	41.2	49.2	19	M12	7/16	UC208-24 UC208-25 UC208	FC208	1.45
UCFC209-26 UCFC209-27 UCFC209-28 UCFC209	1-5/8 1-11/16 1-3/4	45	160	132	93.3	10	16	12	14	26	105	3	51	40.2	49.2	19	M14	1/2	UC209-26 UC209-27 UC209-28 UC209	FC209	2.1
UCFC210-29 UCFC 210-30 UCFC210-31 UCFC210-32 UCFC210	1-13/16 1-7/8 1-15/16 2	50	165	138	97.6	10	16	12	14	28	110	4	53.5	42.6	51.6	19	M14	1/2	UC210-29 UC210-30 UC210-31 UC210-32 UC210	FC210	2.1
UCFC211-32 UCFC211-33 UCFC211-34 UCFC211-35 UCFC211	2 2-1/16 2-1/8 2-3/16	55	185	150	106.1	13	19	12	15	31	125	4	59	46.4	55.6	22.2	M16	5/8	UC211-32 UC211-33 UC211-34 UC211-35 UC211	FC211	3.1
UCFC212-36 UCFC 212-37 UCFC212-38 UCFC212-39 UCFC212	2-1/4 2-5/16 2-3/8 2-7/16	60	195	160	113.1	17	19	12	15	36	135	4	68	56.7	65.1	25.4	M16	5/8	UC212-36 UC212-37 UC212-38 UC212-39 UC212	FC212	3.2
UCFC213-40 UCFC213-41 UCFC213	2-1/2 2-9/16	65	205	170	120.2	16	19	14	15	36	145	4	69.5	55.7	65.1	25.4	M16	5/8	UC213-40 UC213-41 UC213	FC213	3.75
UCFC214-42 UCFC214-43 UCFC214-44 UCFC214	2-5/8 2-11/16 2-3/4	70	215	177	125.1	17	19	14	18	40	150			61.4	74.6	30.2	M16	5/8	UC214-42 UC214-43 UC214-44 UC214	FC214	4.75
UCFC215-45 UCFC215-46 UCFC215-47 UCFC215-48 UCFC215	2-13/16 2-7/8 2-15/16 3	75	220	184	130.1	18	19	16	18	40	160			62.5	77.8	33.3	M16	5/8	UC215-45 UC215-46 UC215-47 UC215-48 UC215	FC215	5
UCFC216-50 UCFC216	3-1/8	80	240	200	141.4	18	23	16	18	42	170			67.3	82.6	33.3	M20	3/4	UC216-50 UC216	FC216	6.1
UCFC217-52 UCFC217	3-1/4	85	250	208	147.1	18	23	18	20	45	180			69.6	85.7	34.1	M20	3/4	UC217-52 UC217	FC217	7.1
UCFC218-56 UCFC218	3-1/2	90	265	220	155.5	22	23	18	20	50	190			78.3	96	39.7	M20	3/4	UC218-56 UC218	FC218	8
